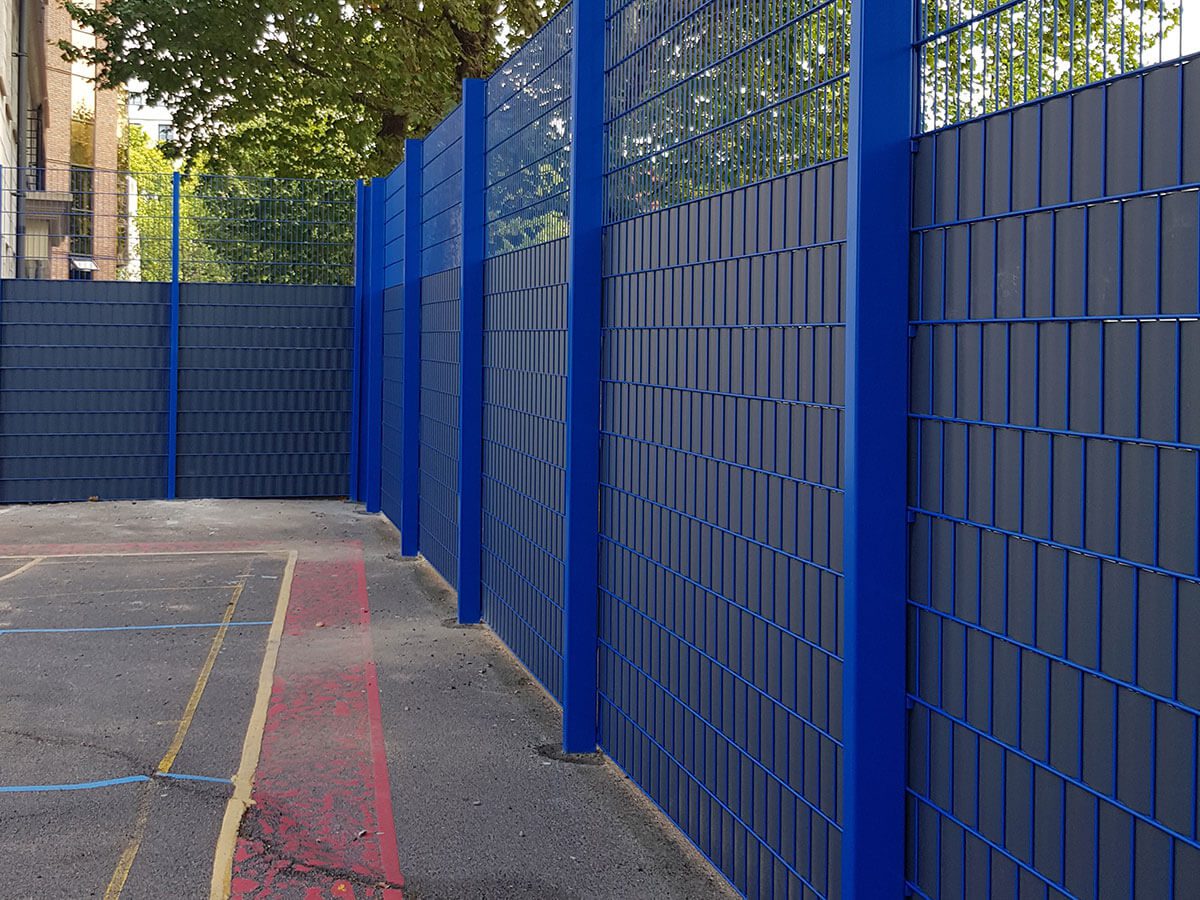

Zaun’s privacy screen fencing is ideally used in areas where restricted viewing is prioritised, such as parks, schools, playgrounds or detention centres. The Privacy fencing is designed to provide your site with the security of a twin wire mesh fencing system (Duo6 or Duo8) and provides a cost-effective full privacy fence.
Privacy fencing is created by fitting the UV stable, weatherproof and durable polyethene screens to our Duo6 or Duo8 double wire fencing systems. In addition, each screen is secured using security fixings to protect against vandals.
The versatile and high-quality privacy screen is ideal for protection against the sun, wind and bad weather, as a privacy screen or noise protection. The privacy screen is easy to install and weaves in and out of the mesh and fixes to the ends with attachment clips. The weaving style creates an attractive and visually appealing screen. Available in a wide range of colours to match the fence colour or blend into the surroundings.
For maintenance, dirt and grime can rinse off the privacy fencing with a garden hose. In addition, the double-sided coating prevents the colours from fading.
Privacy Screen Finish
Polyethene UV stable screen inserts with Duo6 or Duo8 fencing panels and posts galvanised & polyester powder coated after stringent cleaning & treatment to give a well-adhered coating with a minimum of 60 microns.
All Zaun posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.) benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers. In a UK C1 environment, as defined in ISO 12944 p2, this should ensure a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.
Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.
Privacy Fencing on Sloping Ground
Panels may be stepped in increments of 30mm as required within the clamp bar system. However, it is recommended that the taller panels are either partially buried or additional posts are used on steeper gradients.
Pedestrian gates are single leaf 1.2m wide (or width to suit), framed in a 50mm x 50mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and 2 x suitable gate posts.
Vehicle access gates are double leaf (single leaf vehicle gates available) 3.0m wide (or width to suit), framed in 50mm x 50mm RHS, with Zaun Duo8 mesh welded inside the frame, with drop bolts and slide latch. Gate supplied with rubber bump stop and 2 x suitable gate posts.
|Height||1230, 1830, 2030, 2430mm (Note: Additional heights also available upon request)|
|Panel Width||2510mm / Optional 3010mm|
|Mesh Size||200mm x 50mm|
|Wire Diameter||5mm Vertical / 2 x 6mm Horizontals OR 6mm Verticals / 2 x 8mm Horizontals|
|Top Edge Projection||22mm Projection as Standard / Optional Flush|
|Post Size||60 x 40mm up to 120 x 60mm dependant on height|
|Fixing Type||Full-Length Clamp Bar (optional clips|
|Fixing Centres||Max. 400mm|
|Fixings||Anti-Tamper Security Fixings|
